About REST & Symfony

Maxence POUTORD

@_maxpou | maxpou.fr | maxence.poutord@gmail.com

RevealJS Tips

• ESC: slide overview
• ALT + click: zoom
• B: blackout
• S: speaker notes
• Print (then ctrl + p)

About me

GET /speaker/maxpou HTTP/1.1

{
  "name": "Maxence POUTORD",
  "skills": ["Symfony2", "API", "NodeJS", "Software quality"],
  "hobbies": ["motorbike", "cinema (Danish)", "cooking"],
  "job": {
    "job": "web consultant",
    "company": "Conserto"
  }
  "_links": {
    "self": { "href": "maxpou.fr/slides/slides/about-rest/" },
    "blog": { "href": "maxpou.fr" },
    "Twitter": { "href": "twitter.com/_maxpou" },
    "mail": { "href": "maxence.poutord@gmail.com" }
  }
}


REST:

Representational State Transfer

REST in a nutshell

• Software architectural style for World Wide Web apps

• Introduced by Roy Thomas Fielding in 2000
• PhD dissertation: Architectural Styles and the Design of Network-based Software Architectures

REST constraints

• Client–server: clients and servers are separated
• Stateless: each request can be treated independently
• Cache: client can cache response
• Uniform Interface: client and server share a uniform interface
• Layered system: scalability (load balancing), security (firewalls)
• *Code-On-Demand (a.k.a. COD): client request code (flash, java applet, js) from server and execute it!

Resources and representations

Resource: can be anything.

beer:
    id: 42
    shortName: Kwak
    name: Pauwel Kwak
    alcoholDegree: 8.4
    color: amber
    since: 1980
    brewery: Bosteels Brewery

  Kwak
  Pauwel Kwak
  8,4

    Bosteels Brewery

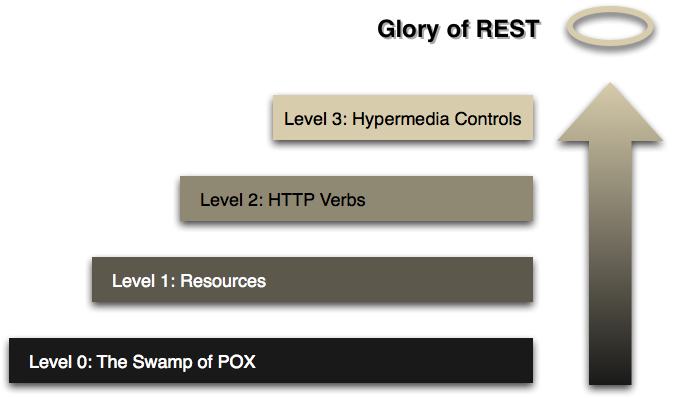

REST and the Richardson Maturity Model (RMM)

Level 1: Resources

• Identification of resources
• 1 URI = 1 resource
• Example:
• /breweries/51
• /breweries/51/beers/42

Route pattern (1/2):
/beer/1 or /beers/1?

• Both of them are REST!
• /hellomynameismaxenceandherearemybeers/1 works too!
• But, plural noun should be used for collection names

Route pattern (2/2): advices

Avoid:

/beers/42/
/beers/42.json
/beers//limit/26
/ugly_name/42
/UglyName/42


Instead, prefer:

/ugly-name/42
/beers?color=blond
/beers?offset=12&limit=5&exclude=2,3&sort=-alcohol


"Cool URIs don't change"
— W3C

Level 2: HTTP verbs

• Client use HTTP verbs
  Example: GET, POST, PUT et DELETE...
• Server use HTTP codes.
  Represent a result of an action
  Example: 200, 201, 403, 404, 500...

Focus: HTTP Verbs

Safe = cacheable
Idempotent = result independent on the number of executions

Focus: HTTP Codes 101

HTTP Status: the bare minimum

• 200: OK
• 201: Created
• 204: No Content
• 206: Partial Content
• 301: Moved Permanently
• 400: Bad request
• 404: Not Found
• 500: Internal Server Error

Still lost?

Am I RESTful if I'm only level 2 compliant?

Why?

GET /beers



    Pauwel Kwak
    8.4


    Tripel Karmeliet
    8.4




How can I interact with my Kwak?

What did Roy Fielding said

If the engine of application state (and hence the API) is not being driven by hypertext, then it cannot be RESTful and cannot be a REST API. Period. [...]
Please try to adhere to them or choose some other buzzword for your API.

Level 3: Hypermedia controls (HATEOAS)

• Hypertext As The Engine Of The Application State
• Resources are self-describing/self-documenting (discoverability)
• Expose state and behavior: "the application state is controlled and stored by the user agent"

Use links to describe HOW the service is used, and media types to describe WHAT is expect

Without HATEOAS



      Kwak


      Pint




      Tripel Karmeliet


      Half
      Pint





HATEOAS



      Kwak




        Half






      Tripel Karmeliet




        Half



        Pint










Content negotiation

Before:

GET /fr/breweries/51.json
GET /en/breweries/51.xml
...

After:

GET /breweries/51
Accept: application/json, application/xml;q=0.9, text/html;q=0.8,
        text/*;q=0.7, */*;q=0.5
Accept-Language: fr, en;q=0.8, de;q=0.7

REST is the web!

Congratulation!

Well... maybe not!

JSON is not a hypermedia format

HAL (Hypertext Application Language)

{
    "_links": {
        "self": { "href": "/beers?offset=1&limit=10" },
        "next": { "href": "/beers?offset=11&limit=10" },
        "ea:find": {
            "href": "/beers{?id}",
            "templated": true
        }
    }
}


JSON-LD

{
    "@context": "http://schema.org",
    "@type": "Brewery",
    "name": "Bosteels Brewery",
    "url": "http://bestbelgianspecialbeers.be",
    "address": {
        "@type": "PostalAddress",
        "streetAddress": "Kerkstraat 96",
        "addressLocality": "9255 Buggenhout",
        "addressRegion": "Belgium"
    }
}


Linked Data

Others

• Hydra + JSON-LD
• SIREN
• ...

Focus

REST = CRUD?

POST /contact

# mail body

Versioning

HTTP/1.1 200 OK
Content-Type: application/json; version=2
Location: /breweries/51


Deprecated call?

HTTP/1.1 406 NOT ACCEPTABLE
Content-Type: application/json

["application/json; version=1", "application/json; version=2", "application/xml; version=1"]

Cache

Security

• Authorization: OAuth
• Authentication: OpenID
• Both: OpenID Connect


• Transport: TLS
• OWASP REST Security Cheat Sheet

Developer experience

3:30:3 rule (by Ori Pekelman)

• 3 sec: WHAT
• 30 sec: WHERE
• 3 min: HOW

Document APIs

RAML 1.0

/beers:
  /{beerId}:
    get:
      description: Retrieve a specific beer
      responses:
        200:
          body:
            application/json:
             example: |
                {
                  "data": {
                    "id": "42",
                    "title": "Kwak",
                    "description": null,
                    "alcohol": 8.4
                    "_link": {
                      "_self": "http:/api.app.com/beers/42"
                    }
                  },
                  "success": true,
                  "status": 200
                }

Swagger

REST & PHP (Symfony2)

JMS Serializer

In a nutshell:

• (De-)serialize data of any complexity
• Support XML, JSON, and YAML
• Doctrine support
• Custom exclusion strategies

schmittjoh/serializer

Problem with mapping entities

Design Pattern: Data Transfer Object

Data Transfer Object - Martin Fowler

FOSRestBundle

• Toolbox
• Automatic route generation
• Content negotiation
• Exceptions
• Support (Symfony) Forms
• API versioning

FriendsOfSymfony/FOSRestBundle

FOSRestBundle: Example

/**
 * Get all Breweries entities
 *
 * @QueryParam(name="offset", requirements="\d+", nullable=true,
 *     description="Offset from which to start listing breweries.")
 * @QueryParam(name="limit", requirements="\d+", nullable=true,
 *     description="How many breweries to return.")
 */
public function getBreweriesAction(ParamFetcher $paramFetcher)
{
    $offset = $paramFetcher->get('offset');
    $limit  = $paramFetcher->get('limit');

    $em        = $this->getDoctrine()->getManager();
    $breweries = $em  ->getRepository('MaxpouBeerBundle:Brewery')
                      ->findBy([], ['name' => 'ASC'], $limit, $offset);

    return $breweries;
}


BazingaHateoasBundle

• implementing representations for HATEOAS REST web service
• Exclusion strategies
• Allows to configure links and embedded resources in XML, YAML, PHP, or Annotations

willdurand/BazingaHateoasBundle

BazingaHateoasBundle: code

use Hateoas\Configuration\Annotation as Hateoas;
/**
 * BreweryDTO
 * No business logic here
 * @Hateoas\Relation("self", href = @Hateoas\Route("api_get_brewerie", parameters = {"id" = "expr(object.getId())"}))
 */
class BreweryDTO
{
    private $id;
    private $name;

    /** @return UUID object id **/
    public function getId()
    {
        return $this->id;
    }
}


BazingaHateoasBundle: result

GET breweries/6b9f3cfa-cc2c-11e5-8adf-2c4138ad20fa

{
    "id": "6b9f3cfa-cc2c-11e5-8adf-2c4138ad20fa",
    "name": "Bosteels brewery",
    "_links": {
      "self": {
        "href": "/beerApp/web/app_dev.php/api/breweries/6b9f3cfa-cc2c-11e5-8adf-2c4138ad20fa"
      }
    }
  }


NelmioApiDocBundle

• Generate a decent documentation
• Swagger format
• Support PHPDoc, JMS Serializer, FOSRestBundle, (SF) Forms
• Export documentation (JSON, HTML, markdown)
• Multiple documentation
• Sandbox !

NelmioApiDocBundle: Example

<?php
use Nelmio\ApiDocBundle\Annotation\ApiDoc;
/**
 * Get all Breweries entities
 *
 * @ApiDoc(
 *  statusCodes={
 *      200="Returned when successful"
 * })
 * @QueryParam(name="offset", requirements="\d+", nullable=true,
 *     description="Offset from which to start listing breweries.")
 * @QueryParam(name="limit", requirements="\d+", nullable=true,
 *     description="How many breweries to return.")
 */
 public function getBreweriesAction(ParamFetcher $paramFetcher)
 {
   //...
 }


See also

Bundles:

• friendsofsymfony/http-cache (Reverses proxies like varnish)
• nelmio/cors-bundle (CORS)
• hautelook/TemplatedUriRouter (RFC-6570)
• dunglas/DunglasApiBundle (JSON-LD)

Examples:

• gimler/symfony-rest-edition
• liip/LiipHelloBundle

Conclusion

"REST isn’t what you think it is, and that’s OK"

Pragmatism over theory

Useful resources

By Mark Masse

Further Reading

• martinfowler.com/articles/richardsonMaturityModel.html
• williamdurand.fr
• RFC 2616
• https://groups.google.com/forum/#!forum/resting-with-symfony
